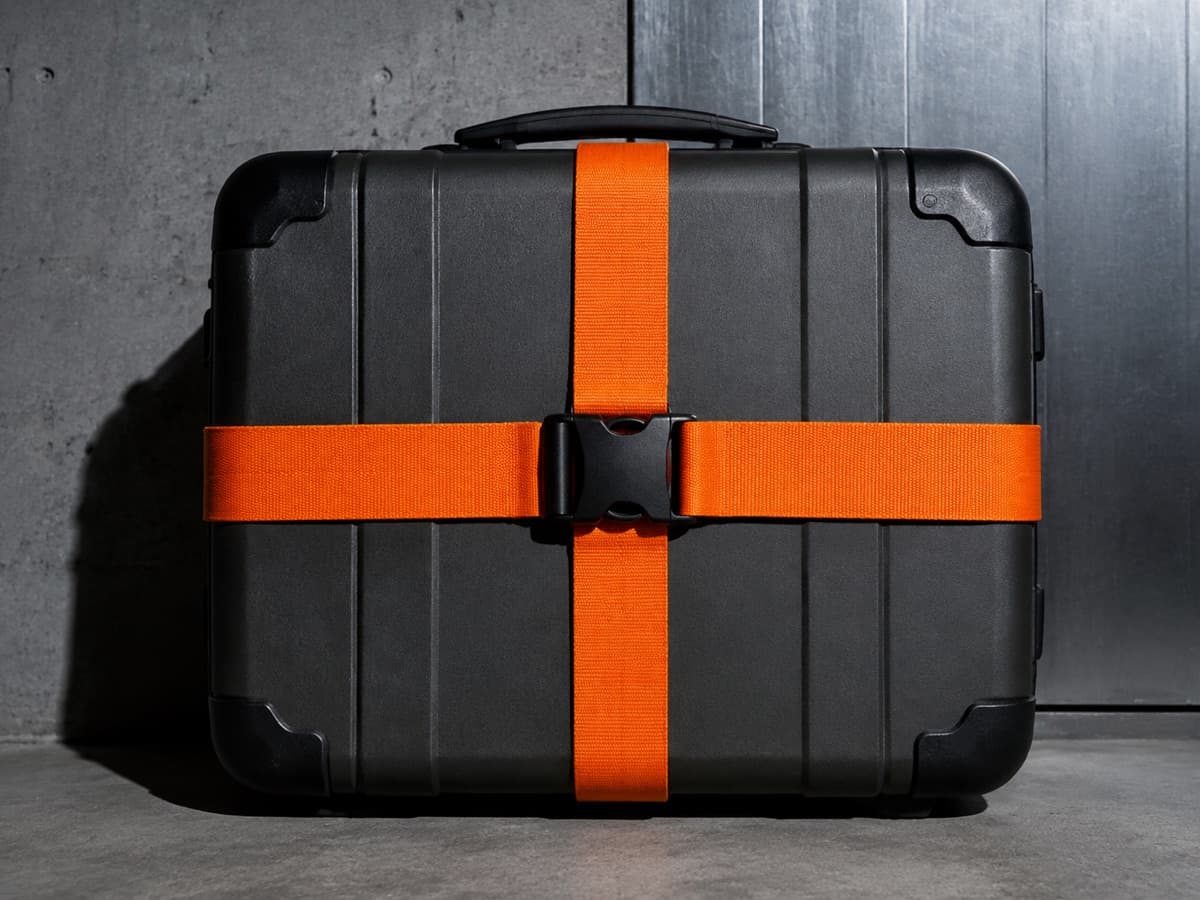

Two woven straps crossing at right angles over the face of a hard-shell case.

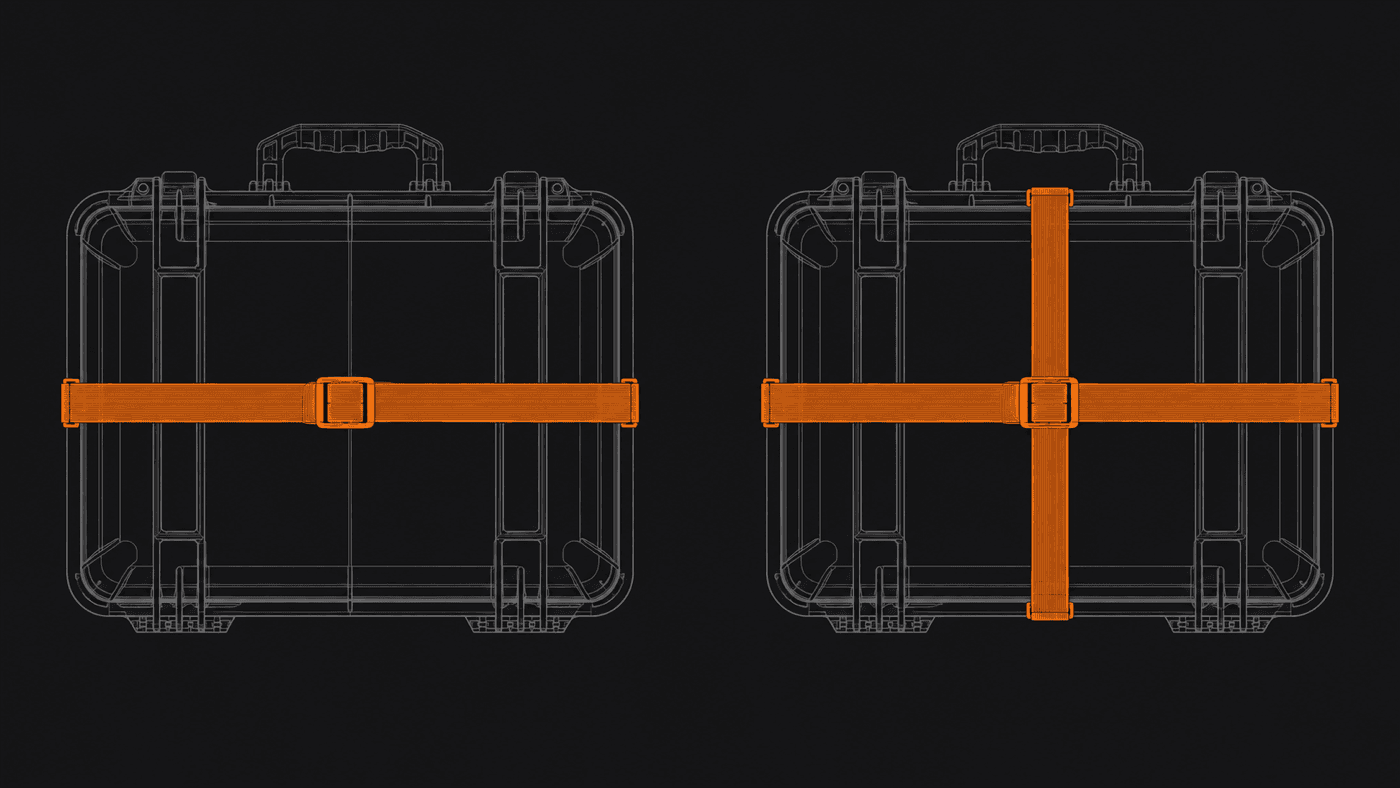

Two panels of a case face: one strap routed around the girth, and two straps crossing.

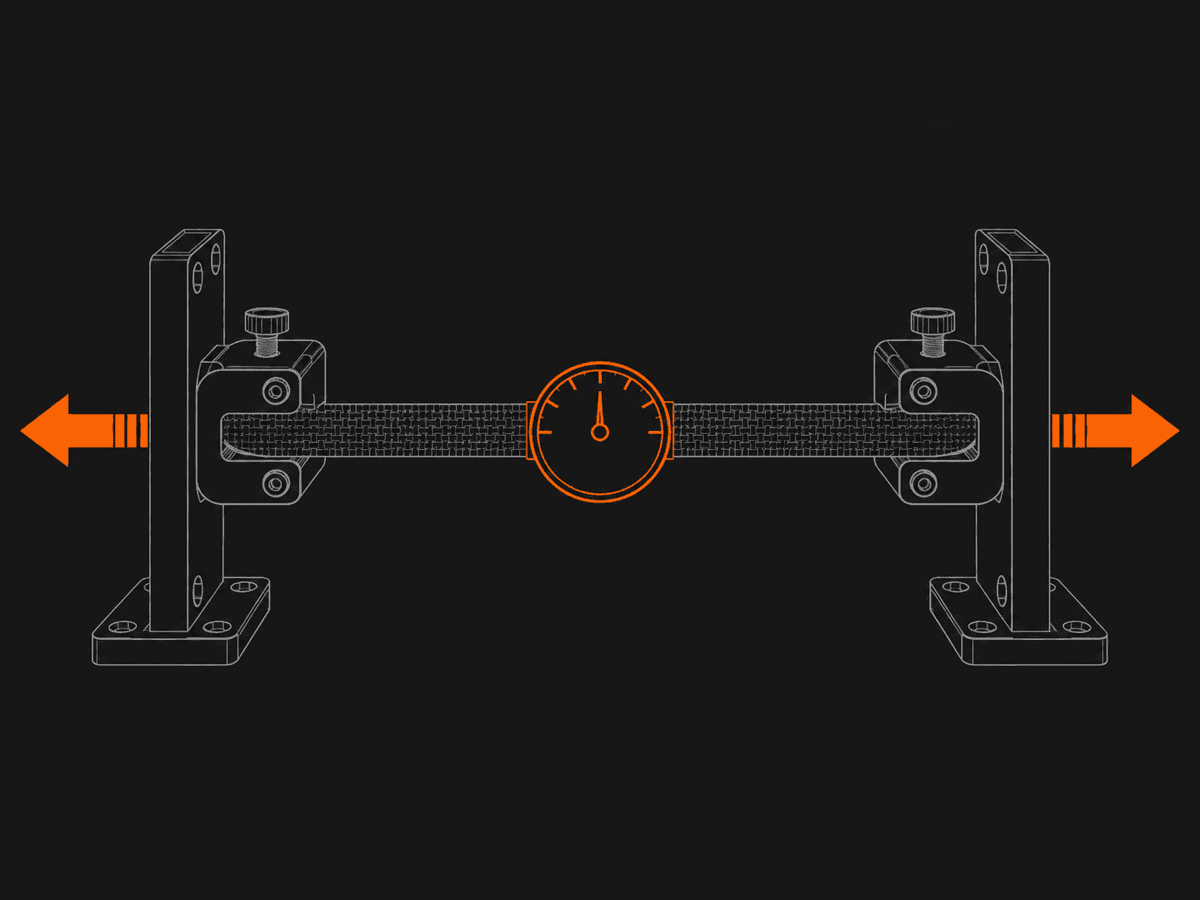

Diagram of a strap held taut between two clamps with opposing pull arrows and an inline gauge.

B · Locks & Straps

Strap Cross

Name: Strap Cross
Brand: Checkline
SKU: B-05
Price: 24.00 USD
Availability: InStock

Two directions instead of one. The single strap slides on a smooth shell; a cross does not.

USD 24

One-time purchase. No subscription.

Free standard shipping over USD 49.

Not sure it fits?

How it is built

Two 50 mm polyester straps joined at a central four-way plate so they run around both the girth and the length of the case. The plate stops either strap creeping toward a corner, which is what a single strap on a polished shell tends to do.

Suits these shells

Hard shell, polycarbonate: Flexes under load and springs back. Takes surface scuffing more than cracking.
Hard shell, ABS: Stiffer and more brittle than polycarbonate. Corners are the usual failure point.
Aluminium frame: A full cover fits badly over the frame lip. Corner and edge guards suit these better.
Soft side, fabric: Absorbs impact but scuffs and tears. Zippers and handles take the strain.

Specification

Fits case height: 56–76 cm · 22–30 in
Material: 50 mm woven polyester webbing, acetal buckles, four-way centre plate
Fits case height: 56–76 cm / 22–30 in
Webbing: 50 mm woven polyester, 2 m plus 1.6 m
Rated working load: 1,200 N per strap
Centre plate: Glass-filled nylon, four-way
SKU: B-05

Where those figures come from

Rated working load: Straight pull on a 50 mm webbing sample at 23 °C on a bench tensile rig, three samples, the lowest value of the three reported. Rated working load, not breaking load.
