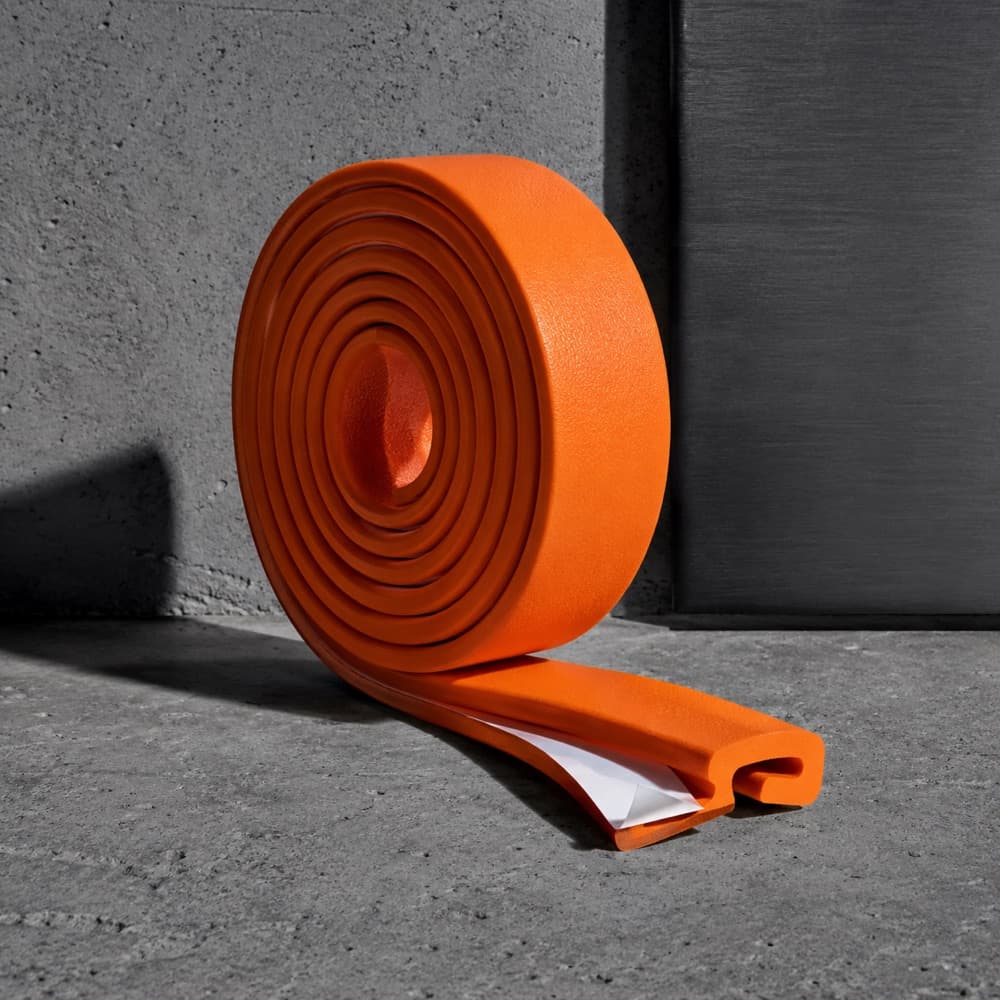

A coil of hazard-orange edge trim partly unrolled, its cut end showing the profile.

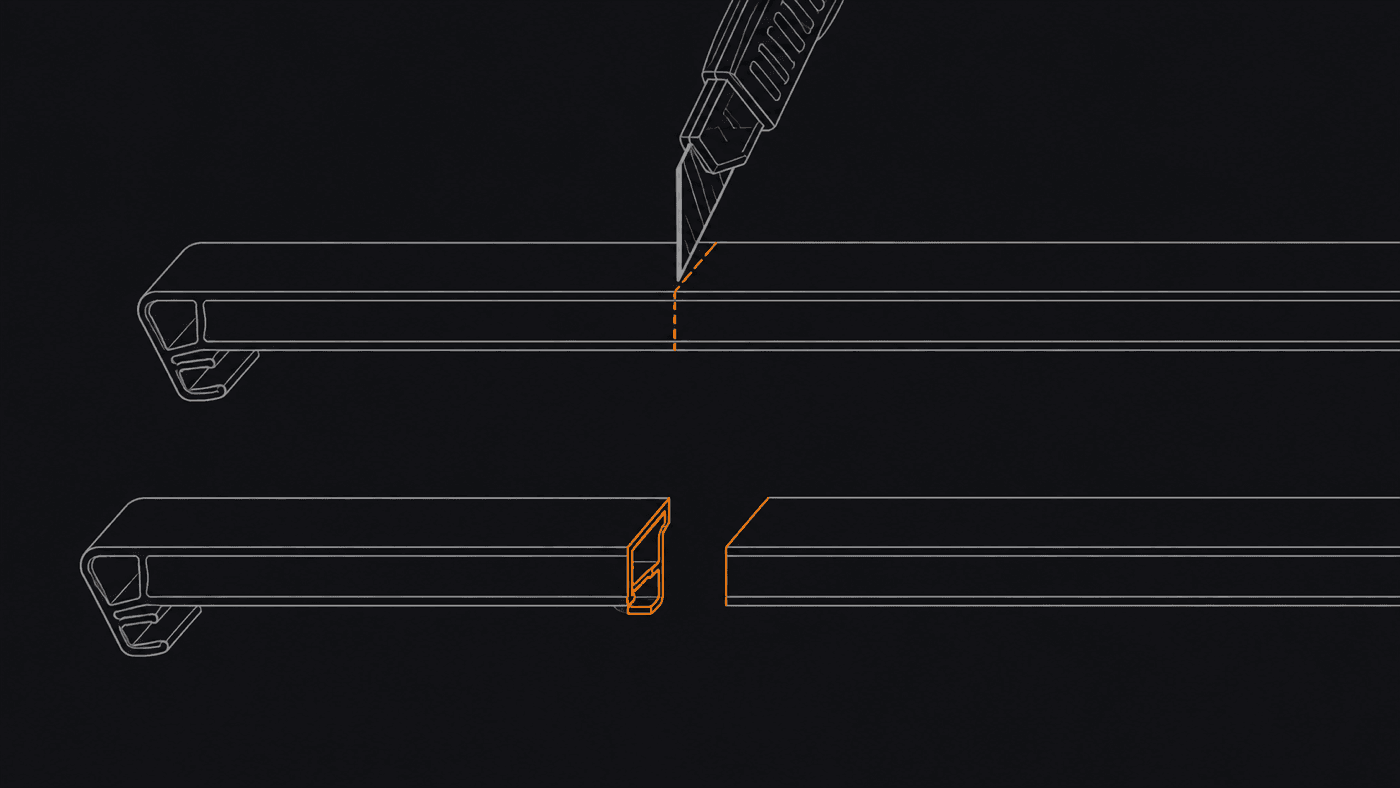

A length of edge trim with a blade square across a marked division and the two cut pieces below.
A length of edge trim with a blade square across a marked division and the two cut pieces below.
A moulded corner guard fitted to the bottom corner of a hard-shell case, its lip wrapping both faces.
A moulded corner guard fitted to the bottom corner of a hard-shell case, its lip wrapping both faces.

C · Corner & Edge Guards

Edge Tape 3m

You decide which edges. Cut it to the run you want — and once it is cut, it cannot come back.

USD 22

One-time purchase. No subscription.

Free standard shipping over USD 49.

Not sure it fits?

Cut to size: once this item has been cut it cannot be returned. You will be asked to confirm you understand this at checkout before you can continue to payment.

Fitted by you, to your case, following the steps below. A part that comes loose, or damage caused by fitting a part incorrectly, is not a product fault.

California Proposition 65WARNING: This product can expose you to chemicals including DEHP, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

How it is built

Three metres of extruded PVC edge trim, 12 mm wide with a 4 mm profile depth, on a permanent acrylic backing. It goes onto whichever edge on your case keeps taking the damage, cut to whatever length that edge is.

Suits these shells

Hard shell, polycarbonate
Flexes under load and springs back. Takes surface scuffing more than cracking.
Hard shell, ABS
Stiffer and more brittle than polycarbonate. Corners are the usual failure point.
Aluminium frame
A full cover fits badly over the frame lip. Corner and edge guards suit these better.

Specification

Material
Extruded PVC trim, 12 mm wide, 4 mm profile, acrylic adhesive backing
Length
3 m on the roll
Profile
12 mm wide, 4 mm deep
Backing
Permanent acrylic adhesive
Returns
Cut-to-size. Not returnable once cut.
SKU
C-03

Where those figures come from

Extruded profile
Width and depth of the extruded section measured with digital callipers at ten points along one production roll, the smallest value of the ten reported.

Fitting

Three steps, no tools.

  1. 01Clean and dry the area of the case the part sits on. Room temperature, indoors.
  2. 02Line the part up dry first and check the fit before you commit any adhesive.
  3. 03Seat it, press it home along its full contact area, and leave it 24 hours before the case is handled.
Fitting sequence for Edge Tape 3m, shown in three stages.
